Best TIG Welder Reviews AC/DC 2021

by John Ward 0 Comments

Once you’ve mastered your MIG skills, you’ll probably want to look at buying a TIG welder. TIG welding is one of the most skillful welding methods that will give you higher quality welds with a cleaner bead. It’s far superior for welding thinner metals and small welds.

To successfully use a TIG welder you need dexterity and patience. With so many TIG welders on the market, we’ve listed our favorite 6 AC/DC TIG welders at a range of different power outputs, to help you choose the best one for you.

TIG Welders Comparison Chart

Below is a comparison chart of the best TIG welders on the market.
WelderImageProcessesVoltageMax AmpsWeight (lb)Duty CyclePriceMore
PRIMEWELD TIG225X
medal Best Overall
primeweld tig 225x tig welderTIG/StickDual2254140% @ 225A$$
Lincoln Square Wave TIG 200lincoln square wave tig 200 k5126-1TIG/StickDual2004625% @ 200A$$$$
AHP AlphaTIG 200Xahp alphatig 200xTIG/StickDual2005060% @ 200A$$
Review
Everlast PowerTIG 210EXTeverlast powerTIG 210 extTIG/StickDual2106260% @ 210A$$$$
Miller TIG Diversion 180miller electric tig welder diversion 180TIGDual1805020% @ 150A$$$$$
Hobart ez tig 165ihobart 500551 ez-tig 165iTIG230V1655020% @ 150A$$$$

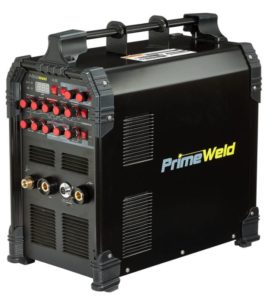

1. PrimeWeld TIG225X

medal Best all-round

medal Best under $1000

primeweld tig 225x tig welder
Power:5 out of 5 stars (5.0 / 5)
Build:4.5 out of 5 stars (4.5 / 5)
Performance:5 out of 5 stars (5.0 / 5)
Features:4.5 out of 5 stars (4.5 / 5)
Price:5 out of 5 stars (5.0 / 5)
Average:4.8 out of 5 stars (4.8 / 5)

Our top pick for the best TIG welder is the PrimeWeld TIG 225X. This TIG welder is high power, produces great welds, and is available at under $1000. Don’t let the low price put you off, this produces some quality results. These tend to sell out fast when they’re in stock, so try and get your hands on them while you can.

The 225x is the highest power welder in our reviews at 225A max output. It’s dual voltage and on 220V it can weld up to 1/4″ aluminum and 3/8″ steel. We’ve seen this on 225A on 3/8″ steel and the welds are smooth and great quality. The duty cycle is great at 40%@225A. You can also easily switch to stick mode to weld up to 1/2″ steel and is capable of 7108 and 6013.

There’s lot of knobs on the front to fine tune your adjustments and the power output appears on a digital display. The knobs feel good to use, they’re easier to use than scrolling through digital menus, easier when wearing gloves and probably more reliable than a microprocessor.

PrimeWeld are a relative newcomer into the market so they haven’t stood the test of time like the big name brands. That being said, most people seem to be having a lot of success with these machines. We’ve spoken to their customer service who responded pretty much straight away, and they have a 3 year warranty to protect your investment. Inside the box the equipment seems overall better than you’d expect for the price. The pedal isn’t great, it’s a bit lightweight, but it does include a CK17 Torch which is top of the range.

Overall this machine is really hard to overlook, especially at its price. It’s perfect for a hobby welder getting into TIG and even professional welders have started using this machine.

Specifications

Brand PrimeWeld
Model TIG225X
Process Type AC/DC TIG, Stick
Amperage Range (A) 20-225
Duty Cycle 40% @ 225A
Input Voltage (V) 115/230
Weld Thickness 24ga. – 3/8″
Weight (lb) 41
Dimensions (in) 14 x 9.25 x 10.75

Pros

  • Smooth welds up to 3/8″ steel
  • Great value for money
  • Includes CK17 Torch
  • HF start
  • 3 year warranty
  • Dual voltage
  • 2T/4T button

Cons

  • Fan is quite loud
  • TIG pedal low quality
  • Long term reliability unknown

2. Lincoln Square Wave TIG 200

lincoln square wave tig 200 k5126-1
Power:5 out of 5 stars (5.0 / 5)
Build:5 out of 5 stars (5.0 / 5)
Performance:5 out of 5 stars (5.0 / 5)
Features:4.5 out of 5 stars (4.5 / 5)
Price:4 out of 5 stars (4.0 / 5)
Average:4.7 out of 5 stars (4.7 / 5)

This award winning welder is really popular due to its ease of use, excellent user interface and exceptional quality and is used by lots of different skill levels. Lincoln welders made in the USA are built to last and stand the test of time. The user interface is ideal, as you have the ability to simply dial in settings and start welding.

Specifications

Brand Lincoln Electric
Model Square Wave TIG 200
Process Type AC/DC TIG, Stick
Amperage Range (A) 10-200
Duty Cycle 60% @ 175A
Input Voltage (V) 115/230
Weld Thickness 24ga. – 3/16 in
Weight (lb) 46
Dimensions (in) 14 x 9.25 x 10.75

Pros

  • Excellent build quality
  • Intuitive and easy to use interface
  • Comes with everything you need to get started apart from the gas bottle
  • Stick welding capability
  • Dual voltage
  • Only 46lb

Cons

  • More expensive than Chinese manufactured welders
  • Arc starts begin at 25 amps. You can set it below this but it starts at 25 then drops down, so you need to be careful when welding very thin metal.

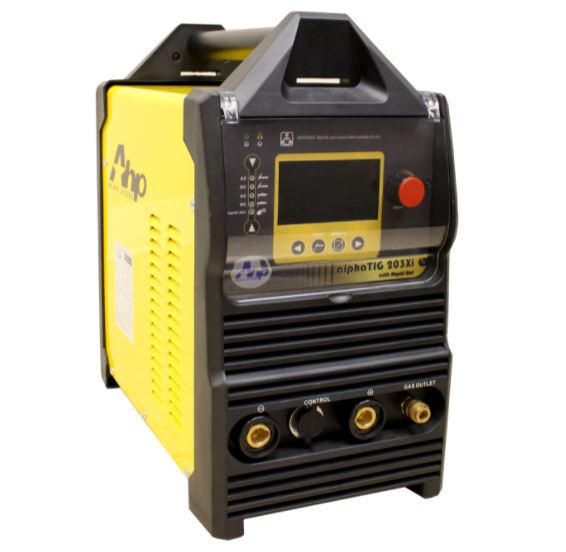

3. AHP AlphaTIG 200X

ahp alphatig 200x
Power:5 out of 5 stars (5.0 / 5)
Build:4 out of 5 stars (4.0 / 5)
Performance:4.5 out of 5 stars (4.5 / 5)
Features:4.5 out of 5 stars (4.5 / 5)
Price:5 out of 5 stars (5.0 / 5)
Average:4.6 out of 5 stars (4.6 / 5)

The AlphaTIG is one of the best value welders on the market that allows you to perform quality TIG and Stick welds without spending too much money. Despite all the knobs on the front, it’s still easy to set up and use. The range of settings on the front does offer more flexibility though. Some cool features are the 2T/4T switch and digital amperage display.

Specifications

Brand AHP
Model AlphaTIG 200X
Process Type AC/DC TIG, Stick
Amperage Range (A) 10-200
Duty Cycle 60% @ 200A
Input Voltage (V) 115/230
Weld Thickness 24ga. – 3/8 in
Weight (lb) 50
Dimensions (in) 22 x 20 x 9

Pros

  • Excellent value for money
  • High duty cycle
  • Dual voltage
  • High frequency TIG start
  • Stick welding capability
  • Weighs just 50lb
  • 2T/4T function

Cons

  • Front panel options can be confusing for a beginner
  • The fans are a bit on the noisy side
  • Chinese manufactured

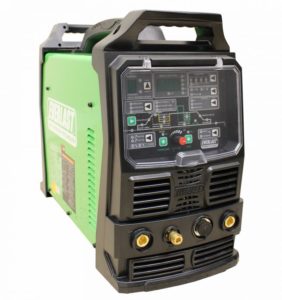

4. Everlast PowerTIG 210EXT

everlast powerTIG 210 ext
Power:5 out of 5 stars (5.0 / 5)
Build:4.5 out of 5 stars (4.5 / 5)
Performance:4.5 out of 5 stars (4.5 / 5)
Features:5 out of 5 stars (5.0 / 5)
Price:4 out of 5 stars (4.0 / 5)
Average:4.6 out of 5 stars (4.6 / 5)

The Everlast PowerTIG 210 is a powerful, top of the range welder that’s industry leading in its settings and features. The microprocessor control helps provide better precision in welding parameters and the ability to fine tune them to the perfect requirements. The 210 is great for welding aluminum and features 3 different wave forms: Advanced Square wave, Soft Square wave, and Triangular. If you’re a beginner, don’t let the settings overwhelm you, the flowchart interface really makes it much simpler to understand.

Specifications

Brand Everlast
Model PowerTIG 210EXT
Process Type AC/DC TIG, Stick
Amperage Range (A) 10-210
Duty Cycle 60% @ 210A
Input Voltage (V) 115/230
Weld Thickness 24ga. – 3/8 in
Weight (lb) 62
Dimensions (in) 17.5 x 22 x 9.25

Pros

  • Advanced welders can fine tune settings
  • Programmable memory allows users to save parameters.
  • Advanced pulse capability
  • Dual voltage
  • Stick capability
  • High Frequency TIG start

Cons

  • Controls can be intimidating

5. Miller TIG Diversion 180

miller electric tig welder diversion 180
Power:4.5 out of 5 stars (4.5 / 5)
Build:5 out of 5 stars (5.0 / 5)
Performance:5 out of 5 stars (5.0 / 5)
Features:4.5 out of 5 stars (4.5 / 5)
Price:3.5 out of 5 stars (3.5 / 5)
Average:4.5 out of 5 stars (4.5 / 5)





This AC/DC TIG welder will give you great results on both aluminum and steel. This also has a simple interface and the ability for both 115 and 230V power input so it’s a good choice for hobbyists and more experienced welders. The multi-voltage plug also allows you to easily change the input voltage without any tools. Miller machines are normally a bit expensive for the hobby welder, but Miller have made this TIG only one as a great way to get started with a quality TIG machine at a more affordable price. It doesn’t have that much power, but if you’re looking for a top range TIG machine for thinner metals, this is the one. Miller pride themselves on excellent manufacturing quality, so this machine is build to stand the test of time and maintain amazing quality.

Specifications

Brand Miller
Model TIG Diversion 180
Process Type AC/DC TIG
Amperage Range (A) 10-180
Duty Cycle 20% @ 150A
Input Voltage (V) 115/230
Weld Thickness 24ga. – 3/16 in
Weight (lb) 50
Dimensions (in) 17.5 x 23.785 x 9.875

Pros

  • Superior build quality
  • Dual voltage
  • High frequency TIG start
  • Fan-On-Demand reduces noise and power consumption.
  • Weighs just 50lb
  • Easy to understand user inferface

Cons

  • Expensive
  • Not suitable for heavy duty welding projects

6. Hobart EZ TIG 165i

hobart 500551 ez-tig 165i
Power:4 out of 5 stars (4.0 / 5)
Build:5 out of 5 stars (5.0 / 5)
Performance:5 out of 5 stars (5.0 / 5)
Features:4 out of 5 stars (4.0 / 5)
Price:4 out of 5 stars (4.0 / 5)
Average:4.4 out of 5 stars (4.4 / 5)





The Hobart EZ-TIG 165i is a great quality TIG welder that has a simple user interface with just one knob on the front. The Amperage setting offers infinite control for more flexibility and finer control to help achieve better welds. It’s only compatible with a 230v power supply so you won’t be able to use this with your standard household power supply, but if you have a generator then you’ll be ready to plug it in and start welding in no time.

Specifications

Brand Hobart
Model EZ-TIG 165i
Process Type AC/DC TIG
Amperage Range (A) 10-165
Duty Cycle 20% @ 150A
Input Voltage (V) 115/230
Weld Thickness 22ga. – 3/16 in
Weight (lb) 50
Dimensions (in) 17 x 23.785 x 9.875

Pros

  • Weighs just 50lb
  • Has all parts included apart from gas cylinder
  • Good build quality
  • Easy to use, great for a beginner or hobbyist

Cons

  • Not dual voltage
  • More expensive that Chinese manufactured welders
  • Not suitable for heavy duty welding

How to use a TIG Welder?

A TIG welder requires more skill than a MIG welder because you have three things to control: the filler rod, the torch and the foot pedal. However, this allows for much more control of heat input as you can adjust these elements to achieve more specific results.

The system works by using an electric TIG torch in one hand to strike the arc with a filler rod in the other hand to feed the filler metal into the weld pool. The foot pedal controls the amperage released by the welder. You can set the maximum amperage on your TIG welder, then use the pedal to change the amperage. Holding the pedal all the way down will give you maximum amperage. This flexibility is great as it allows you to slowly start the welding process and help to prevent thermal shock in the metal.  When you set up your TIG welder you need to make sure your ground clamp is attached to the workpiece or you metal workbench.

Through the TIG torch you’ll also release Argon gas into the weld pool to protect to weld from contamination. You’ll have to hook up a gas bottle and regulator for this. Make sure you choose the right welding gas (Argon) as your MIG bottle won’t be appropriate.

Factors for Choosing a TIG Welder

Voltage

You need to decide what your primary voltage requirements are when choosing a TIG welder. The 3 options are a 120V input which is your normal household power supply, a 240V input which requires a generator, or a 120V/240V which offers both.

If you’re just welding from your home workshop, then you’ll be comfortable with a 120V TIG welder. I like to have 120/240V for maximum flexibility which allows me to get more power. Don’t buy a 240V input if you’re looking to use the welder from your household power supply.

Material Thickness

Consider the thickness of the material you’re going to be welding. This will  determine the amperage range of the welder you need to buy. A welder with a higher amperage range will be able to weld thicker metal. Remember, you can turn a powerful welder down but you can’t turn a low power welder up past its limit – so if you’re not sure about the metal thickness then go for a powerful one.

Budget & Warranty

The price of the welder is an important consideration. TIG welders aren’t cheap but you’re paying for quality results. We’ve included brands that make high-quality machines that have been proven to stand the test of time. Consider the warranty as well on welders to help protect your purchase if anything goes wrong.

Multi-process or just TIG?

When you buy a TIG welder, some will allow you to perform other welding applications such as stick welding. Depending on what equipment you’ve already got, you may consider a multi-process welder as a better option. If you’ve already got a good stick welder, then you might be better off choosing a straight up TIG welder.

Weight and portability

The weight is an important factor if you’re planning on moving the welder about. You’ll probably be best putting these machines on a welding cart as they’re not easy to transport.

Duty cycle

The duty cycle indicates the length of time you can weld continuously without overheating. A TIG welder with a 20% duty cycle at 200A could be operated for a 2 minute period at 200A and would need an 8 minute cooldown period.

We hope you liked our article “The Best TIG Welders in 2021” if so, we’d really appreciate it if you could rate and share it.
